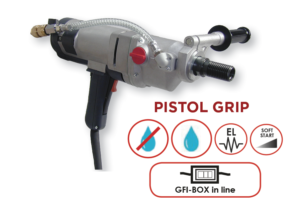

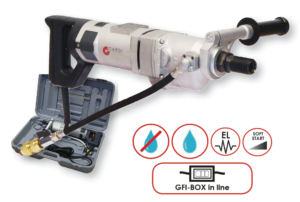

Electronic Cardi 3 Speed Hand Held Core Drill

Part # Cardi T1-PU-EL-71X

• 3 Speed hand-held core drill

• Electronic clutch with soft start

• 120 V, 50/60 Hz, 18 amp 2.5 HP

• 1-1/4″ male shaft with 5/8″ adapter

• Wet and dry drilling

• 6″ core bit capacity

• Case included

• Idle RPM: 770/1860/2580

• Load RPM: 570/1380/1920

• Built in GFI UL624841-1 on cord

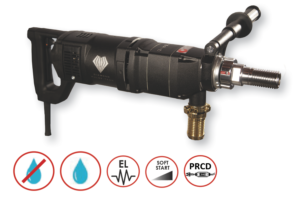

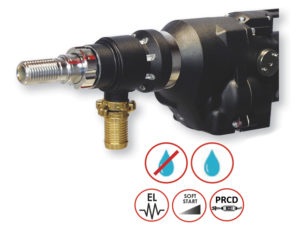

Cardi Electronic 3 Speed Motor Wet/Dry Hybrid Core Drill

Part # Cardi TOL-MU-EL-71X

• 2 Speed hand-held core drill

• Electronic clutch with soft start

• 120 V, 50/60 Hz, 18 amp

• 1-1/4″ male shaft with 5/8″ adapter

• Wet and dry drilling

• 5″ core bit capacity

• Case included

• Idle RPM: 1180/2150

• Load RPM: 930/1700

• Built in GFI UL624841-1 on cord

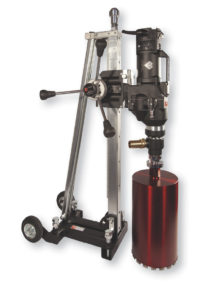

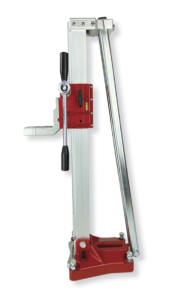

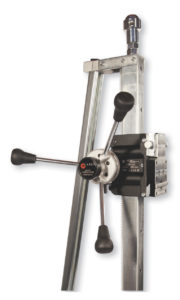

Cardi Core Drill Stand with Anti-Vibration Technology

Part # Cardi CDP 520

• Carriage with steel rollers & bearings

• Steel column 2″ x 2″

• Steel anchor base

• Anti-Vibration feed handle

• Dove tail quick connect mount

• Tilting mast 0 deg to 45 deg

• Max carriage travel 27″

• Max bit diameter 20″

• Weight 53 lbs

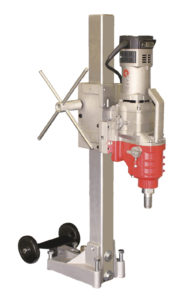

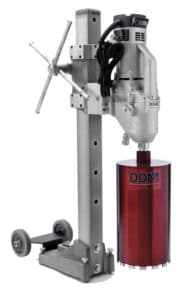

PART#

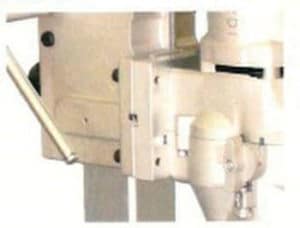

X2-42-2-V625 with type 2 motor mount plate

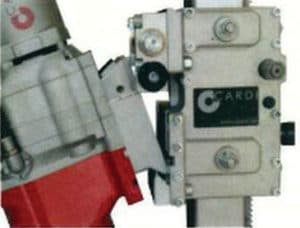

X2-42-6-V625 with type 6 mount plate

Cam-lock quick connect

• Voltage 120v 50/60 Hz

• Power: 2820W/25 Amp

• Idle/Load Speed (R.P.M.)

1st Gear: 260/170

2nd Gear: 500/330

3rd Gear: 810/540

4th Gear: 1360/900

5th Gear: 1200/780

6th Gear: 1670/1100

• Capacity in concrete 1″ – 20″

• Bit connection: 1-1/4″ UNC

• Mechanical clutch: Brass rings

• Multi-function electronics with soft star, electronic clutch

• Weight: 40 lbs

• Steel column 2-7/8: square x 42″ tall

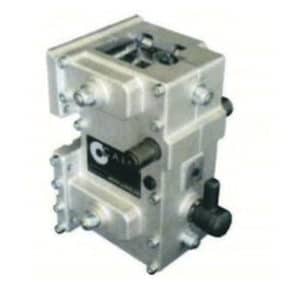

• Adjustable roller carriage

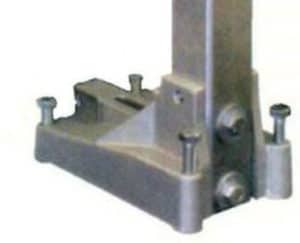

• Anchor base

• Wheel kit

• Capacity without spacer 1″ – 14″

• Capacity without spacer 22″ – 26″

• Weight – 112 lbs

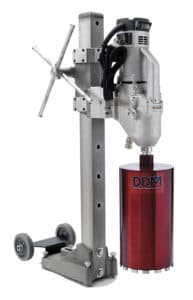

PART#

X2-42-2-T9475 with type 2 motor mount plate

X2-42-6-T9475 with type 6 mount plate

Cam-lock quick connect

• Voltage 120v 50/60 Hz

• Power: 2820W/25 Amp

• Idle/Load Speed (R.P.M.)

1st Gear: 260/170

2nd Gear: 500/330

3rd Gear: 810/540

4th Gear: 1360/900

• Capacity in concrete 1″ – 18″

• Bit connection: 1-1/4″ UNC

• Mechanical clutch: Brass rings

• Multi-function electronics with soft star, electronic clutch

• Weight: 31 lbs

• Steel column 2-7/8: square x 42″ tall

• Adjustable roller carriage

• Anchor base

• Wheel kit

• Capacity without spacer 1″ – 14″

• Weight – 112 lbs

• Voltage 120v 50/60 Hz

• Power: 2820W/25 Amp

• Idle/Load Speed (R.P.M.)

1st Gear: 310/205

2nd Gear: 700/465

3rd Gear: 1300/860

4th Gear: 1360/900

• Capacity in concrete 1″ – 18″

• Bit connection: 1-1/4″ UNC

• Mechanical clutch: Brass rings

• Multi-function electronics with soft star, electronic clutch

• Weight: 28 lbs

• Steel column 2-7/8: square x 42″ tall

• Adjustable roller carriage

• Anchor base

• Wheel kit

• Capacity without spacer 1″ – 14″

• Weight – 112 lbs

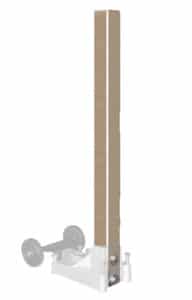

Column 42 Inch Tall

Part # DR-Column-42

• Steel column 2-7/8″ square

• 42″ Tall

• Wheel kit and base not included

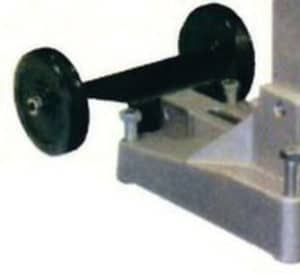

Wheel Kit

Part # 505387-SM

• Easy and quick motor assembly

• No bolts or screws needed

Z2R  2-7/8″ Drill Stand Accessories

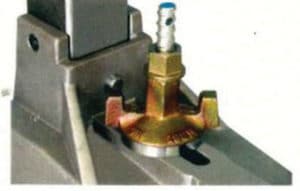

Cam Lock

Type 6 Spacer 6″

Part # 505630

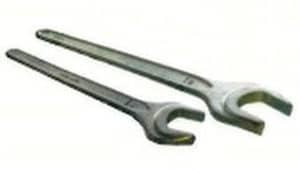

Wrenches

Part # 501970: 32mm

Part # 502971: 41mm

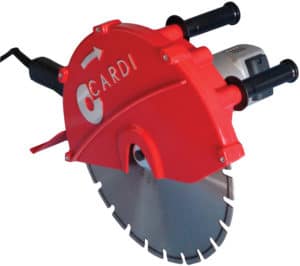

Cardi TP400-EL Handsaw

The Cardi TP-400-EL is the only 16″ electric saw on the market. Powered by the same reliable motor used on the Cardi core Drill, this saw can cut up to 6″ deep.  The soft start keeps you from blowing breakers. A flush cut kit is available.

• Voltage: 115-120 50/60 Hz

• Power: 2300 W (Max 3450 / 4.6)

• Rated Current/Plug 20 amp:  NEMA L5-20

• R.P.M. Idle/On Load: 2350/1770

• Blade Diameter:  16″

• Maximum cutting depth:  6.25″

• Blade arbor diameter/suitable blade hole:  1″

• Flush Cut: TP-400-FC Only

• Weight kg/lbs TP-400:  13/29

• Weight kg/lbs: TP-400-FC:  12.5/28
